Daikin Sensira TXF35F Air Conditioner with WiFi 3.5 kW 12000 BTU

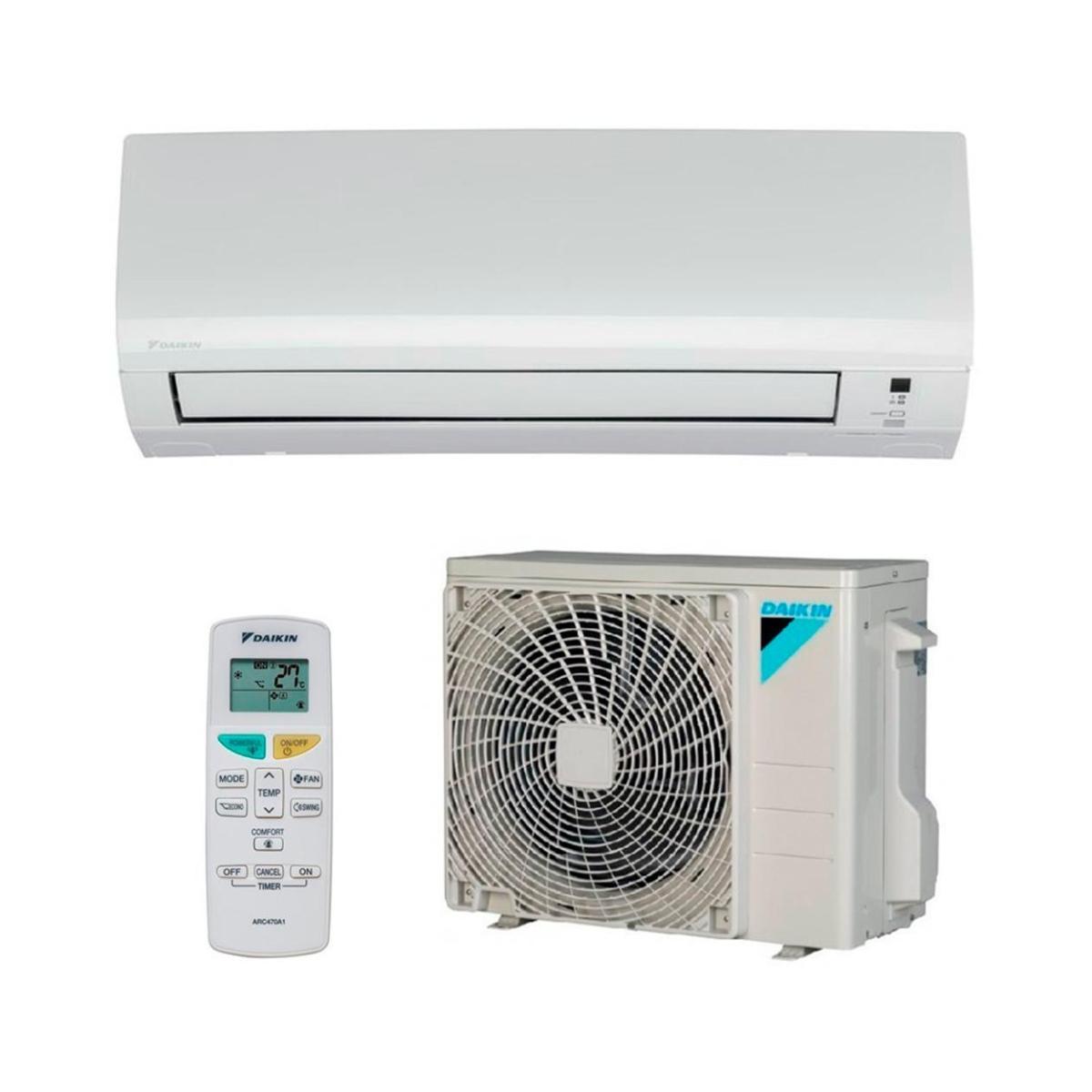

The Daikin Sensira TXF35F split air conditioning set is a high-performance climate control system, ideal for homes and commercial spaces seeking efficiency, comfort, and advanced technology. It consists of the indoor unit FTXF35F, the outdoor unit RXF35F, and a remote control, offering total control over the temperature and system functions.

Maximum performance with low energy consumption

This model stands out for its excellent energy efficiency, allowing optimal climate control with reduced consumption.

• Cooling capacity: from 1,300 W to 3,800 W
• Heating capacity: from 1,300 W to 4,400 W
• SEER (cooling efficiency): 6.50
• SCOP (heating efficiency): up to 4.30
• Nominal consumption: 1,000 W in cooling and 940 W in heating

These values ensure a perfect balance between power and energy savings, guaranteeing a lower impact on the electricity bill.

Ultra-silent operation for greater comfort

The Daikin Sensira TXF35F is designed to offer maximum comfort with minimal noise levels. Its indoor unit reaches a sound pressure level of only 20 dBA in the quietest mode, allowing installation in bedrooms, offices, and other spaces where noise can be a nuisance.

Additionally, it includes the Comfortable Sleep mode, which automatically adjusts the temperature and dims the display light to ensure uninterrupted rest.

Double air filtration: greater purity and health

This model incorporates an advanced air purification system, with two filters designed to improve air quality:

• Titanium apatite filter: Absorbs pollutants, eliminating bad odors and reducing harmful chemicals.
• Catechin filter: Traps dust, allergens, and bacteria, ensuring cleaner and healthier air.

This filtration system is ideal for homes with children, people with allergies, or those looking to improve indoor air quality.

Advanced functions for personalized use

The TXF35F is equipped with multiple operating modes that adapt to different needs:

• Powerful Mode: Quickly reaches the desired temperature in cooling or heating.
• 24-hour Timer: Facilitates programming the system to turn on or off at the desired time.
• Integrated WiFi: Allows controlling the climate system through a mobile app, optimizing energy management and comfort.

Detailed technical specifications

Dimensions and weight

• Indoor unit:
  • Height: 286 mm
  • Width: 770 mm
  • Depth: 225 mm
  • Weight: 8.5 kg
• Outdoor unit:
  • Height: 556 mm
  • Width: 740 mm
  • Depth: 343 mm
  • Weight: 24 kg

Key technical data

• Refrigerant: R-32 (0.55 kg)
• Airflow in cooling: up to 11.5 m³/min
• Fan speeds: 5 levels + automatic and silent modes
• Sound pressure (indoor unit):
  • Lowest mode: 20 dBA
  • Maximum mode: 43 dBA
• Sound pressure (outdoor unit):
  • Cooling: 48 dBA
  • Heating: 48 dBA
• Acoustic power level: 62 dBA

Installation and connections

• Pipe connection:
  • Liquid: Ø6.4 mm (1/4")
  • Gas: Ø9.5 mm (3/8")
• Electrical supply: Single-phase 220V
• Number of interconnection wires: 3 + T
• Minimum pipe length: 1.5 m | Maximum: 20 m
• Maximum level difference: 12 m
• Additional refrigerant charge: 0.02 kg/m (for installations over 10 m)

The Daikin Sensira TXF35F is a system that combines energy efficiency, silent operation, and advanced technology to provide the best thermal comfort. Its double filtration system, low consumption, and WiFi connectivity make it an ideal solution for climate control in any space with optimal performance and purer air.
