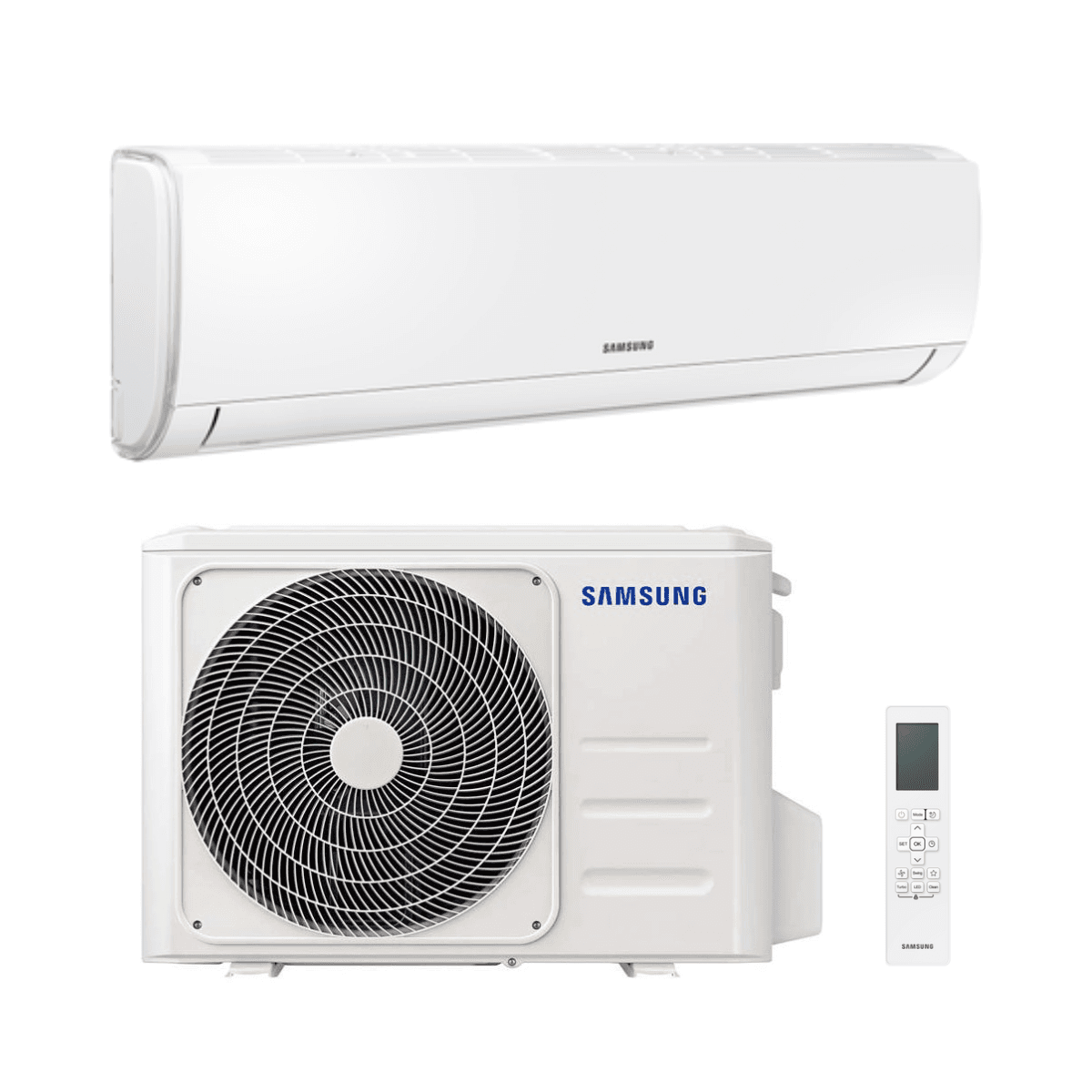

Samsung AR35 2.6 kW 9000 BTU Air Conditioner with WiFi (New Model)

The Samsung AR35 2.5 kW (9000 BTU) air conditioner combines efficiency, comfort, and connectivity to cool or heat rooms of 10 to 25 m² (approximate). It comes with built-in WiFi, a Digital Inverter compressor, and features designed to enhance your daily experience, both for cooling and heating.

Integrated WiFi and Voice Control

Features built-in WiFi for remote control via SmartThings, allowing you to manage the unit from your smartphone, schedule operation times, and fine-tune settings with precision. It is also compatible with voice control through Bixby, Google Assistant, and Amazon Alexa.

Digital Inverter Technology and FOLLOW ME Comfort

The Digital Inverter compressor continuously adjusts power to maintain a more stable temperature and help reduce energy consumption. The FOLLOW ME function uses the temperature detected by the remote control to optimize operation and improve comfort in your immediate area.

Washable Filter and Low Noise Level

Equipped with a high-density HD filter, washable and designed to capture dust and common airborne particles. Acoustically, the system operates quietly, making it ideal for bedrooms and relaxation areas.

• Indoor unit noise level (high/low): 36 / 20 dB
• Outdoor unit noise level (high): 49 dB

Seasonal Performance and Energy Consumption

This model meets the required seasonal efficiency values for air conditioning. For heating, two SCOP values are provided depending on climate: average and warm.

• Nominal cooling capacity: 2.5 kW (9000 BTU/h)
• Nominal heating capacity: 2.9 kW (10000 BTU/h)
• SEER (cooling): 6.3
• Annual cooling consumption: 156 kWh/year
• SCOP (heating, average climate): 4.0
• Annual heating consumption (average climate): 910 kWh/year
• SCOP (heating, warm climate): 4.6
• Annual heating consumption (warm climate): 791 kWh/year

Refrigerant and Charge

• Refrigerant: R32
• Factory charge: 550 g
• Additional charge (over 5 m): 12 g per meter

Refrigerant Connections (Pipe Diameters)

• Liquid: 6.35 mm (1/4")
• Gas: 9.52 mm (3/8")

Installation: Pipe Lengths and Height Difference

Designed for standard residential installations, it allows for a wide pipe length to adapt to different outdoor unit locations.

• Pre-charged / maximum pipe length: 5 / 25 m
• Maximum height difference: 10 m

Operating Range

• Cooling: -10 ~ 46 °C
• Heating: -15 ~ 24 °C

Dimensions and Weight

• Indoor unit AR40H09C1AMNEU: 805 x 285 x 194 mm · 8.1 kg
• Outdoor unit AR40H09C1AMXEU: 720 x 495 x 270 mm · 23.2 kg

Reference Electrical Data

• Number of conductors: 3 + 1
• Panel protection (installation < 10 m): 16 A

Package Contents

Set includes 1 indoor unit AR40H09C1AMNEU, 1 outdoor unit AR40H09C1AMXEU, and remote control, ready for professional installation.
