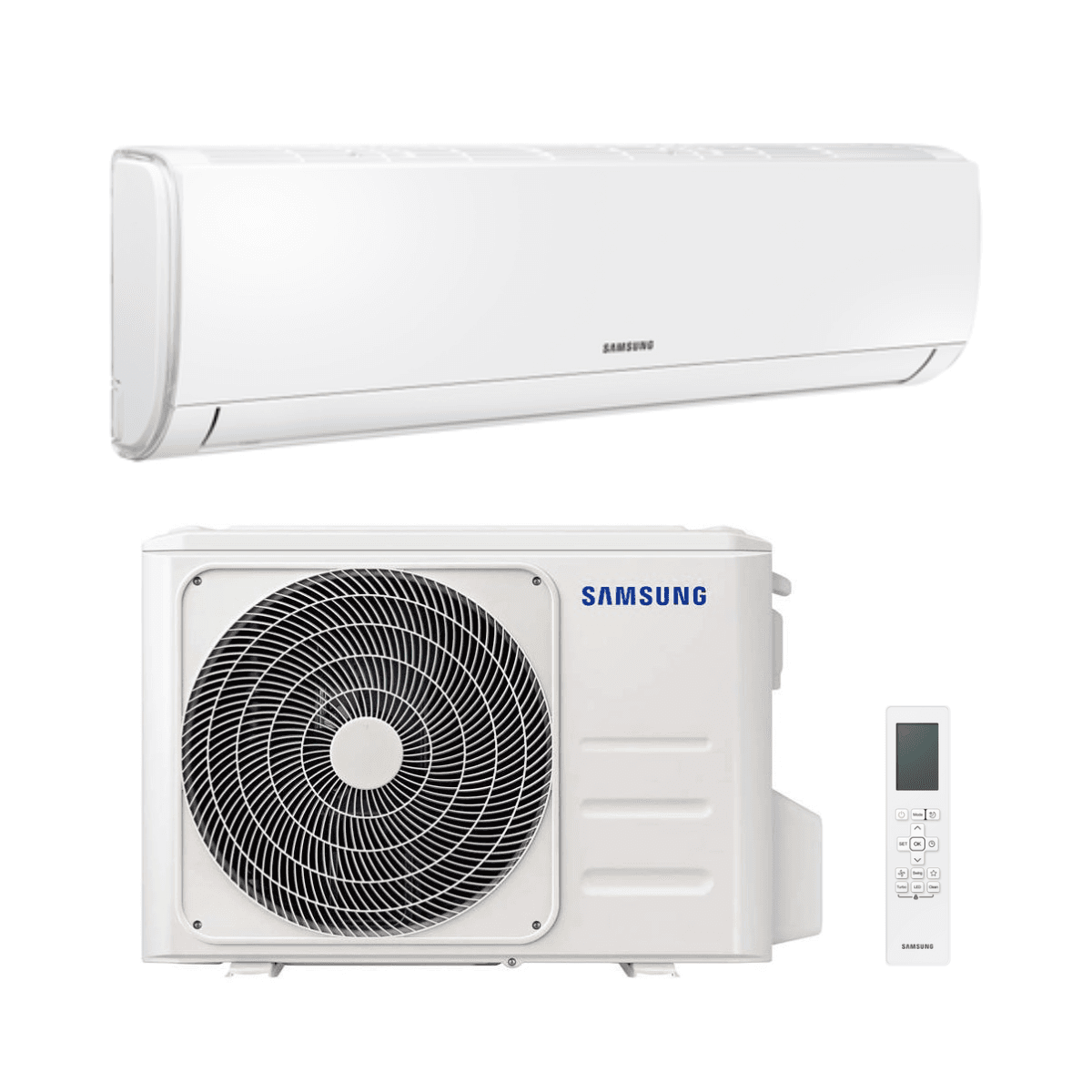

Samsung AR35 5.2 kW 18000 BTU Air Conditioner with WiFi (New Model)

The Samsung AR35 5.3 kW (18000 BTU) air conditioner is designed to deliver high performance in medium and large rooms, with an approximate coverage area of 30 to 55 m². This new model features built-in WiFi, increased cooling capacity, and optimized efficiency for both cooling and heating.

Integrated WiFi and Voice Control Compatibility

Thanks to the integrated WiFi, the unit can be easily controlled via the SmartThings app, allowing you to manage your climate from anywhere. It is also compatible with Bixby, Google Assistant, and Amazon Alexa, providing convenient and intuitive operation for everyday use.

Digital Inverter Technology and FOLLOW ME Function

The Digital Inverter compressor gradually adjusts power to match real thermal demand, improving temperature stability and helping to optimize energy consumption. The FOLLOW ME function uses the remote control’s sensor to regulate operation based on the temperature in the user’s location.

Air Filtration and Balanced Sound Levels

The system features a high-density HD filter, washable and designed to trap dust and airborne particles. Despite its higher power, it maintains controlled sound levels, making it suitable for residential use.

• Indoor unit noise level (high/low): 42 / 30 dB
• Outdoor unit noise level (high): 51 dB

Seasonal Performance and Energy Efficiency

The Samsung AR35 18000 BTU stands out for its excellent seasonal performance, especially in cooling. For heating, SCOP values for average and warm climates are provided.

• Nominal cooling capacity: 5.3 kW (18000 BTU/h)
• Nominal heating capacity: 5.3 kW (18000 BTU/h)
• SEER (cooling): 7.1
• Annual cooling consumption: 261 kWh/year
• SCOP (heating, average climate): 4.0
• Annual heating consumption (average climate): 1470 kWh/year
• SCOP (heating, warm climate): 4.6
• Annual heating consumption (warm climate): 1400 kWh/year

Refrigerant and Charge

• Refrigerant: R32
• Factory charge: 1000 g
• Additional charge (over 5 m): 12 g per meter

Refrigerant Connections (Pipe Diameters)

• Liquid: 6.35 mm (1/4")
• Gas: 12.70 mm (1/2")

Installation: Pipe Lengths and Height Difference

The unit offers greater installation flexibility, allowing for longer pipe runs and greater height differences between units.

• Pre-charged / maximum pipe length: 5 / 30 m
• Maximum height difference: 20 m

Operating Range

• Cooling: -10 ~ 46 °C
• Heating: -15 ~ 24 °C

Dimensions and Weight

• Indoor unit AR40H18C1AMNEU: 957 x 302 x 213 mm · 10.9 kg
• Outdoor unit AR40H18C1AMXEU: 805 x 554 x 330 mm · 32.7 kg

Reference Electrical Data

• Number of conductors: 3 + 1
• Panel protection (installation < 10 m): 20 A

Package Contents

Set includes 1 indoor unit AR40H18C1AMNEU, 1 outdoor unit AR40H18C1AMXEU, and remote control, ready for professional installation.
