Samsung AR35 Air Conditioner with WiFi 7.0 kW 24000 BTU (New Model)

The Samsung AR35 7.0 kW (24000 BTU) Air Conditioner is designed to provide efficient climate control in large rooms, with an approximate coverage area of 50 to 75 m². This new model combines high cooling capacity, integrated WiFi connectivity, and reliable performance for both cooling and heating.

Integrated WiFi and Voice Control Compatibility

The unit features built-in WiFi for remote control via the SmartThings app, allowing you to adjust the temperature, schedule timers, and manage operation from anywhere. It is compatible with Bixby, Google Assistant, and Amazon Alexa, ensuring a convenient and intuitive user experience.

Digital Inverter Technology and FOLLOW ME Function

The Digital Inverter compressor gradually adjusts power according to thermal demand, helping to maintain a stable temperature and optimize energy consumption. The FOLLOW ME function uses the temperature sensor in the remote control to adapt operation to the area where the user is located.

Air Filtration and Controlled Noise Levels

Equipped with a high-density HD filter, washable and designed to capture dust and airborne particles. Despite its high power, it maintains low noise levels for comfortable use in residential environments.

• Indoor unit noise level (high/low): 43 / 37 dB
• Outdoor unit noise level (high): 56 dB

Seasonal Performance and Energy Efficiency

The Samsung AR35 24000 BTU offers balanced seasonal performance, ideal for intensive use. Heating values are indicated for SCOP in average and warm climates.

• Nominal cooling capacity: 7.0 kW (24000 BTU/h)
• Nominal heating capacity: 7.3 kW (25000 BTU/h)
• SEER (cooling): 6.1
• Annual cooling consumption: 412 kWh/year
• SCOP (heating, average climate): 3.9
• Annual heating consumption (average climate): 2240 kWh/year
• SCOP (heating, warm climate): 4.0
• Annual heating consumption (warm climate): 2240 kWh/year

Refrigerant and Charge

• Refrigerant: R32
• Factory charge: 1600 g
• Additional charge (over 5 m): 24 g per meter

Refrigerant Connections (Pipe Diameters)

• Liquid: 9.52 mm (3/8")
• Gas: 15.88 mm (5/8")

Installation: Pipe Lengths and Height Difference

Designed for demanding installations, it allows for long pipe runs and greater height differences between units.

• Pre-charged / maximum pipe length: 5 / 50 m
• Maximum height difference: 25 m

Operating Range

• Cooling: -10 ~ 46 °C
• Heating: -15 ~ 24 °C

Dimensions and Weight

• Indoor unit AR40H24C1AMNEU: 1040 x 327 x 220 mm · 13.0 kg
• Outdoor unit AR40H24C1AMXEU: 890 x 673 x 342 mm · 42.9 kg

Reference Electrical Data

• Number of conductors: 3 + 1
• Panel protection (installation < 10 m): 20 A

Package Contents

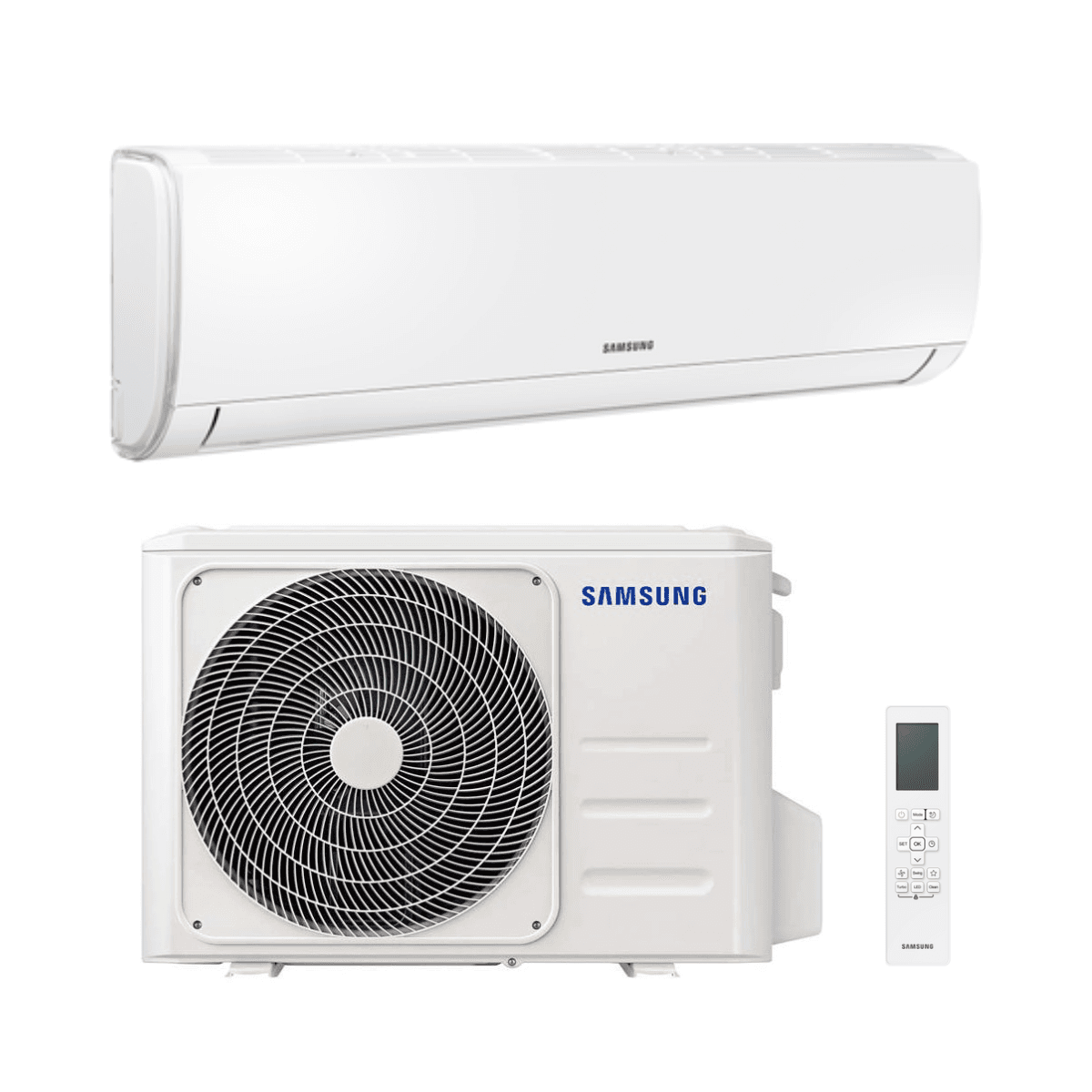

Set includes 1 indoor unit AR40H24C1AMNEU, 1 outdoor unit AR40H24C1AMXEU, and remote control, ready for professional installation.
